Accessories
|
Evaluation Kits
|
Target Product(s) |
|---|---|
| EK01 | SA01 |
| EK03 | SA03 |
| EK06 | SA160, SA60 |
| EK07 | SA09 |
| EK09 | Universal Kit TO-3 and 12-pin Power Pkg |
| EK11 | PA90, PA91, PA98 |
| EK13 | PA341 (DF package), PA441 (DF package) |
| EK14 | DP Package Op Amps |
| EK16 | PA90, PA91, PA92, PA93, PA98 |
| EK17 | SA12 |
| EK19 | PA94, PA95 |
| EK21 | PA74 |
| EK24 | PA164 |
| EK27 | PA50, PA52 |
| EK28 | PA97 |
| EK29 | PB51 |
| EK30 | PA07, PA08, PA85, PA88, PA96 |
| EK31 | PA01, PA10, PA12, PA51, PA61, PA73, PA119 |
| EK33 | PA75 (CX package) |
| EK36 | PA99 |
| EK37 | MP104 |
| EK39 | MP103 |
| EK40 | MP106 |
| EK42 | PA15, PA341 (DW package), PA441 (DW package) |
| EK43 | SA110 |
| EK45 | PA04, PA05 |
| EK47 | PB63, PB64 |
| EK49 | MP165 |
| EK50 | PB50, PB58 |
| EK56 | MSA240, MSA260 |
| EK57 EK57 Addendum |
MP108, MP111, MP118 |
| EK59 | MP38CL, MP39CL |
| EK61 | PA78, PA79 (PA79 included in kit) |
| EK64 | Generic for DK and FN Packages |
| EK65 | MP400 |
| EK66 | PA194 |
| EK68 | PA162 |
| EK71 | PA107 |
| EK74 | PA165 |
| EK75 | MP206 |
| EK76 | SA310 |
| EK79 | PA22 |
| EK80 | CD64 |
| EK84 | SA111 |
| EK86 | PA198 |
| EK87 | PA166 |
| EK89 | AIC1601 |
| EK-SA50 | SA50 |
|
Heatsinks
|
Outline | Target Package |
|---|---|---|
| HS01 |
|
TO-3 (CE) |
| HS02 |
|
TO-3 (CE) |
| HS03 |
|
TO-3 (CE) |
| HS04 |
|
TO-3 (CE) |
| HS05 |
|
TO-3 (CE) |
| HS06 |
|
12-Pin MO-127 (CR, CU, DC) |
| HS09 |
|
TO-3 (CE) |
| HS11 |
|
2x TO-3 plus 1x Power DIP (12-pin) Liquid cooled |
| HS13 |
|
TO-3 (CE) |
| HS14 |
|
TO-3 (CE) |
| HS16 |
|
10-pin Power DIP (DE) |
| HS18 |
|
12-pin MO-127 (CR, CU, DC) Open Frame (CL, FC, FD) |
| HS20 |
|
Power SIP (DP, DQ, FL, EE, EC, FU) TO-220 (CD, CX) |
| HS21 |
|
18-pin DIP (EL) |
| HS22 |
|
TO-220 (CD, CX) |
| HS23 |
|
TO-220 (CD, CX) |
| HS24 |
|
SMT Mount Packages DDPAK (CC) PSOP (DF, DK) HSOP (HR) |
| HS26 |
|
Open Frame (FC, KC) |
| HS27 |
|
Power SIP (DP, DQ, FL, EE, EC, FU) TO-220 (CD, CX) |
| HS28 |
|
TO-220 (CD, CX) Isotek_PBV |
| HS29 |
|
Power SIP (DP, DQ, FL, EE, EC, FU) TO-220 (CD, CX) |
| HS31 |
|
Open Frame (FC, FD, CL, KL, KP) |
| HS32 |
|
Power SIP (DP, DQ, FL, EE, EC, FU, GN) TO-220 (CD, CX) |
| HS33 |
|
SMT Mount Packages PSOP (DF, DK) HSOP (HU, HR) |
| HS34 |
|
10-pin Power DIP (CW) for PA99 & PA99A |
| HS35 |
|
Open Frame (FC, FD, KF, CL, KL) |
| HS36 |
|
SMT Mount Packages Power QFP (PQ) HSOP (HU) |
| HS39 |
|
Power DIP (Including KR Package) |

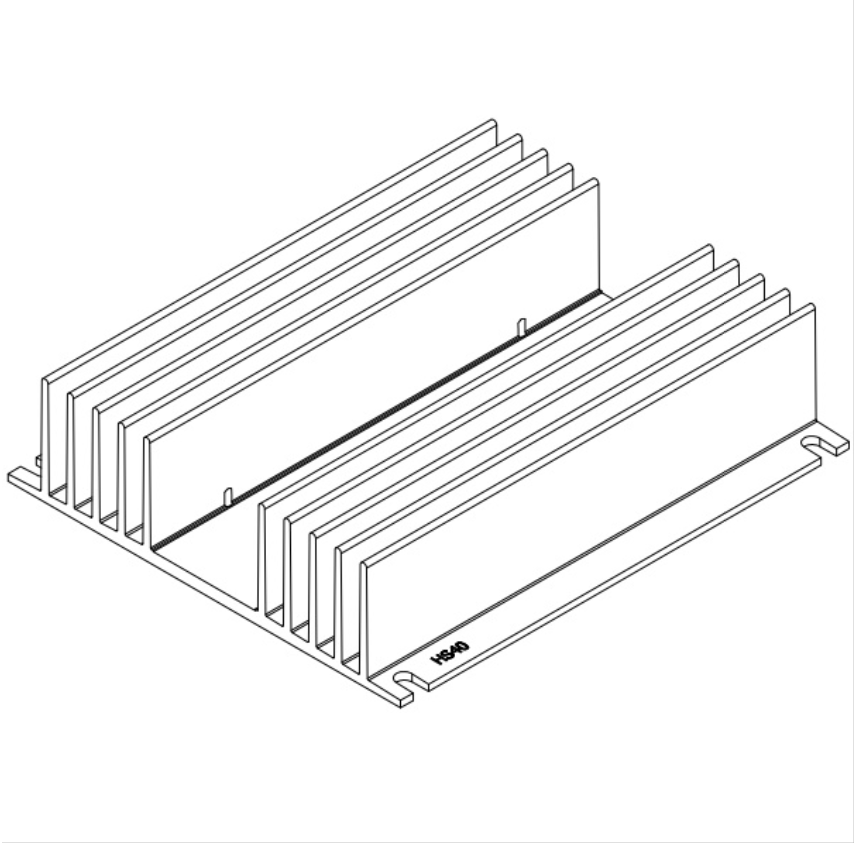

| HS40 |
|
Open Frame (GT) for CD64 |
|
Mating Sockets
|
Outline | Description |
|---|---|---|
| MS02 |
|
Pin receptacle for standard TO-3 pins |
| MS03 |
|
TO-3 socket |
| MS04 |
|
Pin receptable for standard Power DIP pins |
| MS05 |
|
Power DIP Socket (12-pin) |
| MS06 |
|
Power SIP socket |
| MS11 |
|
Open Frame Cage Jacks |
|
Thermal Washers
|
Outline | Target Package |
|---|---|---|
| TW03 |
|
TO-3 |
| TW05 |
|
12-pin Power DIP |
| TW06 |
|
Power SIP |
| TW07 |
|
Power SIP |
| TW09 |
|
DIP |
| TW10 |
|
Power DIP |
| TW13 |
|
SIP |
| TW14 |
|
TO-220 |
| TW15 |
|
Power SIP |
| TW21 |
|
Power DIP |
| TW22 |
|
Power DIP (16-Pin) |
|
Clamps
|
Outline | Target Package |
|---|---|---|
| Clamp02 |
|
18-pin DIP (EL) |
| Clamp04 |
|
TO-220 (CD, CX) |
| Clamp05 |
|
Power SIP (DP, DQ, FL, EE, EC, FU, GN) |
