PA08
300V, 150mA, Low Bias Power Amplifier with Programmable Current Limit
- Voltage supply operation – ±15V to ±150V
- Programmable output current limit
- High output current – up to 150mA PEAK
- Low bias current – FET input
- SMD #: 5962-9072301HXA

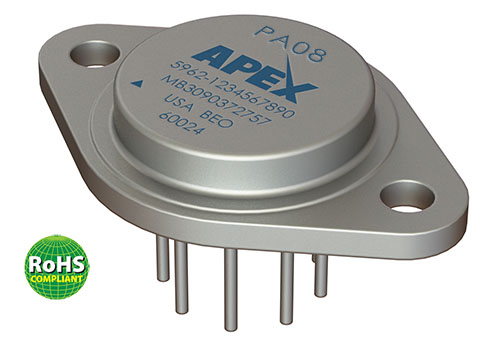

The PA08 is a high voltage power operational amplifier designed for output voltage swings up to ±145V with a dual supply, or a 290V single supply. This power amplifier delivers high accuracy via a cascode input circuit configuration. All internal biasing is referenced to a zener diode fed by a FET constant current source. As a result, the PA08 features an unprecedented supply range and excellent supply rejection. Target applications for this POA include electrostatic transducers, deflection circuits and programmable power supplies.
The PA08A is the A grade version providing enhance performance in the areas of offset voltage, offset current and bias current. The PA08V is the extended supply range version (350V). The PA08M/883 is the fully certified military grade version. The PA08 series is a hybrid product design housed in an electrically isolated, hermetically sealed 8-pin TO-3 metal package. For continuous operation under load, a heatsink of proper rating is recommended.
PA08M/883 SMD #: 5962-9072301HXA
- MS02 Mechanical Drawing PIN RECEPTACLE
- HS14 Mechanical Drawing for PA08 TO-3 HEATSINK
- HS13 Mechanical Drawing for PA08 HEATSINK, TO-3
- HS02 Mechanical Drawing for PA08 HEATSINK, TO-3
- HS03 Mechanical Drawing for PA08 HEATSINK, TO-3
- HS05 Mechanical Drawing for PA08 HEATSINK, TO-3
- HS01 Mechanical Drawing for PA08 HEATSINK, TO-3
- MS03 Mechanical Drawing TO-3 SOCKET
- HS04 Mechanical Drawing for PA08 HEATSINK, TO-3
- HS11 Mechanical Drawing for PA08 HEATSINK, TO-3 & P-DIP
- TW03 Mechanical Drawing THERMAL WASHER, TO-3
- HS09 Mechanical Drawing for PA08 HEATSINK, TO-3
- PA08 Support Components
| Variant | +VS to -VS (V) | Slew Rate (V/μs) | Vos (mV) | IB (pA) | IIO (pA) | Temp Range (°C) | Package Option | MIL-PRF-38534 | Purchase |
|---|---|---|---|---|---|---|---|---|---|
| PA08 | 300 | - | 2 | 50 | 50 | -25 to 85 | 8-pin TO-3 | - | BUY NOW |
| PA08A | 300 | 20 | 0.5 | 10 | 10 | -25 to 85 | 8-pin TO-3 | - | BUY NOW |
| PA08V | 350 | - | 2 | 50 | 50 | -25 to 85 | 8-pin TO-3 | - | BUY NOW |
| PA08M | 300 | 20 | 3.7 | 50 | 50 | -55 to 125 | 8-pin TO-3 | - | BUY NOW |
| PA08M/883 | 300 | 20 | 3.7 | 50 | 50 | -55 to 125 | 8-pin TO-3 | compliant | BUY NOW |
See how the PA08 fits your system requirements
Use our Power Design Tool to assist with designing high power analog circuits.
