PA02

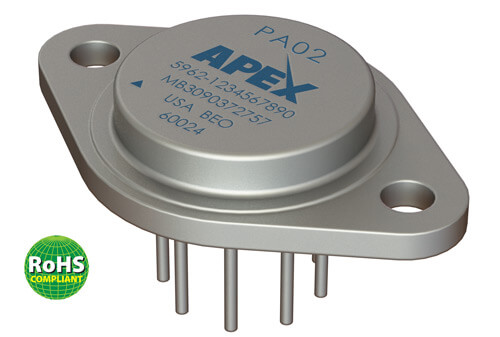

350kHz, 5A, 20V/µs Power Amplifier with Fast Settling Time
- Fast settling time – 600ns
- High power bandwidth – 350kHz
- High slew rate – 20V/µs
- Low crossover distortion – Class A/B
- Low internal losses – 1.2V @ 2A
- High output current – 5A PEAK
- Low input bias current – FET input
- Isolated case – 300VDC
- SMD #: 5962-9067901HXA

The PA02 is a 5A, 38V power operational amplifier with a very high 350kHz power bandwidth designed to drive resistive, inductive and capacitive loads such as motor, valve and actuator controls. The PA02 provides a complementary “collector output” stage that can swing close to the supply rails and is protected against inductive kickback. Low crossover distortion and internal losses as low as 1.2V at 2A make this device very efficient when system voltages are low and power is at a premium.
The PA02A is the A grade version providing enhance performance in the areas of offset voltage, offset current and bias current. The PA02M/883 is the fully certified military grade version. The PA02 series is a hybrid product design housed in an electrically isolated, hermetically sealed, 8-pin TO-3 metal package. For continuous operation under load, a heatsink of proper rating is recommended.
PA02M/883 SMD #: 5962-9067901HXA
-
MS03 Mechanical Drawing
TO-3 SOCKET - HS04 Mechanical Drawing for PA02 HEATSINK, TO-3
- HS11 Mechanical Drawing for PA02 HEATSINK, TO-3 & P-DIP
- TW03 Mechanical Drawing THERMAL WASHER, TO-3
- HS14 Mechanical Drawing for PA02 TO-3 HEATSINK
- HS13 Mechanical Drawing for PA02 HEATSINK, TO-3
- HS02 Mechanical Drawing for PA02 HEATSINK, TO-3
- HS03 Mechanical Drawing for PA02 HEATSINK, TO-3
- HS05 Mechanical Drawing for PA02 HEATSINK, TO-3
- HS01 Mechanical Drawing for PA02 HEATSINK, TO-3
- MS02 Mechanical Drawing PIN RECEPTACLE
- HS09 Mechanical Drawing for PA02 HEATSINK, TO-3
- PA02 Support Components
